You can browse through the pictures or click on the Briggs & Stratton Model letter in the table below to go to the most common carburetor for that engine.
BACK TO TECHNICAL DATA PAGE
| A (5 DIGIT) | A (6 DIGIT) | B (ALL) | F | FB | FC |
| FE | FG | FH (EARLY) | FH (LATE) | FHI | FI |
| FJ | H | I (EARLY) | I (LATE) | K | L |
| M | N | NS | P | PB (EARLY) | PB (LATE) |
| Q | R | S | T | U | W |
| WI | WM | WMB | WMI | Y | Z |
| ZZ | 5 | 6 | 8 | 9 | 14 |
| 23 | PC-300 | PC-WM | PC-WMB | 5S | 6S |
This carburetor was manufactured by Briggs & Stratton and was used on the following Models:
A (5 digit), FJ, H, M, T, and possibly some early B's.
This carburetor was manufactured by Tillotson for Briggs & Stratton and was used on certain versions of the same models that used the Type A Carburetor. The air horn/choke assembly is also used on the Type A carburetor.
This carburetor was manufactured by Tillotson? for Briggs & Stratton and was used on the following Models:
FG, FHI, FI
This carburetor was manufactured by Briggs & Stratton and was used on the following Models
WI, NS
This carburetor was manufactured by Briggs & Stratton and was used exclusively on the Model U engine. Notice the two tubing connections on the bottom. This carburetor is a definite identifier for the Model U.
This carburetor was manufactured by Briggs & Stratton and is sort of a float version of the type G carburetor shown above. It also has a unique air cleaner. I have only seen it used on the Model WI.
This carburetor was manufactured by Briggs & Stratton and was used exclusively on the Model Y engine. This carburetor is a definite identifier for the Model Y.
This carburetor was manufactured by Briggs & Stratton and was used on the following Models
FH (later models), S
This carburetor was manufactured by Briggs & Stratton and was used on the following Models
WM, WMB, WMI, WI (early), PC-WM, PC-WMB
This carburetor was manufactured by Tillotson and was used on the following Models:
PB, Q
This carburetor was manufactured by Briggs & Stratton and is called the small Flo-Jet two piece. It is used on the following Models:
A (6 Digit), I, N, WI?, 5, 6, 8
This carburetor was manufactured by Kingston and was used on High Speed versions of the following Models:
B, K, Z, and possibly others
This carburetor was manufactured by Briggs & Stratton and is called the Vacu-Jet. It is used on the following Models:
5S, 6S

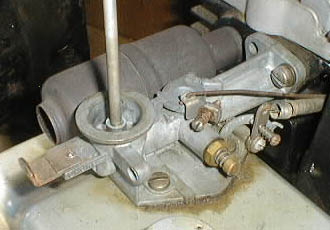

This carburetor was manufactured by Briggs & Stratton and was used exclusively on the Model L engine. This carburetor is a definite identifier for the Model L.
This carburetor was manufactured by Briggs & Stratton and was used on the following models:
I, WI, PC series using Model I
Known as the "Peace Pipe" carburetor, this bronze carburetor was manufactured by Briggs & Stratton and was used on the following models:
F, FB,
This bronze carburetor was manufactured by Briggs & Stratton and was used on the following models:
FE, FH (early)
This carburetor was manufactured by Briggs & Stratton and is called the large Flo-Jet two piece. It is used on the following Models:
B, K, R, Z, ZZ, ,14, 23
This carburetor was manufactured by Tillotson and was used on the following Models:
R, W, B?, Z?
This carburetor was manufactured by Schebler? It is a modification of the Motor Wheel carburetor with provision for an air cleaner. The carburetor body is bronze. It was used on the following Models:
P, PB (early)
This carburetor was manufactured by Briggs & Stratton and was used exclusively on the Model C engine. This carburetor is a definite identifier for the Model
C.
